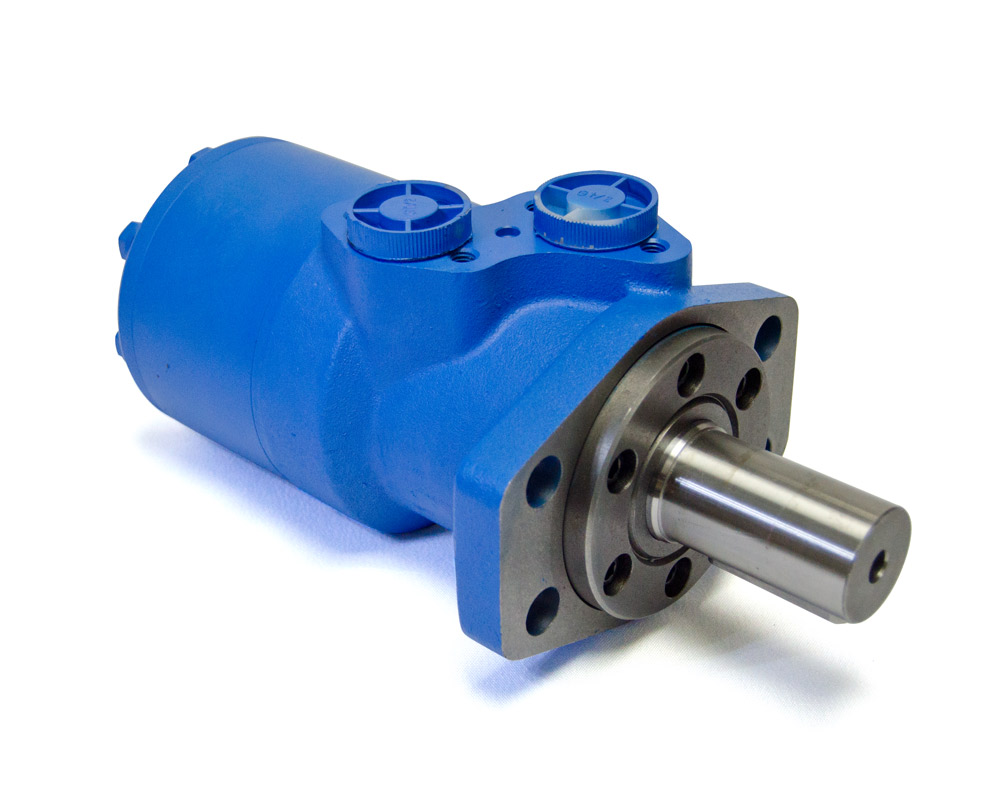

METARIS MMPS SERIES ORBITAL MOTORS
Genuine Metaris® MMPS series motors are spool valve motors that can be used in parallel or series configurations. MMPS series orbital motors are available in 11 different displacement sizes with a diverse offering of mounting flanges, shaft configurations and porting options. Form & function replacements for common motors in the market today such as Eaton®/Char-Lynn®, Danfoss®, Parker® and White®.
-
Replacements for:
- Danfoss DH, DS, OMP, OMR Series
- Char-Lynn H(101-), S(103-), T(158-) Series
- Parker TB, TC Series
- White HB(300), RS(200/201), WD(145/146), WG(275/276/277/278/280/281), WP(155/156), WR(255/256) Series
- Suitable for a variety of applications
- 11 different gear sizes available
- Spool Valve distribution type
- Advanced Roller-Star technology, requiring lower pressure at start-up and providing smoother operation at all speeds
- High efficiency shaft bearing, which allows higher pressure, speed and radial force
- Pressures up to 2000 psi
- Speeds up to 750 rpm
- Multiple porting options
- High pressure shaft seal, which allows for higher back pressures and an increased ability to handle high pressure spike conditions
- Internal integrated check valve, which limits case pressure by blocking the high pressure port side and allowing the motor housing to drain into the outlet (low pressure) port
- Variety of Mounting Flange and Shaft Options
- Alternatives for Eaton®/Char-Lynn®, Danfoss®, Parker®, White® and more
| Model Code (Disp.) | Displacement (in³ / cm³) |
Max RPM | Flow (gpm / lpm) |
Pressure (PSI / bar) |
|---|---|---|---|---|
| MMPS01 | 3.1 / 50 | 750 | 10.0 / 38 | 2002 / 138 |
| MMPS02 | 3.8 / 63 | 778 | 14.0 / 53 | 2002 / 138 |
| MMPS03 | 4.9 / 80 | 635 | 14.0 / 53 | 2002 / 138 |
| MMPS04 | 6.1 / 100 | 510 | 14.0 / 53 | 2002 / 138 |
| MMPS05 | 7.6 / 125 | 430 | 14.0 / 53 | 2002 / 138 |
| MMPS06 | 9.8 / 160 | 329 | 14.0 / 53 | 1798 / 124 |
| MMPS07 | 12.2 / 200 | 266 | 14.0 / 53 | 1798 / 124 |
| MMPS08 | 15.3 / 250 | 213 | 14.0 / 53 | 1798 / 124 |
| MMPS09 | 18.6 / 305 | 171 | 14.0 / 53 | 1494 / 103 |
| MMPS10 | 22.6 / 370 | 142 | 14.0 / 53 | 1204 / 83 |
| MMPS11 | 24.1 / 395 | 133 | 14.0 / 53 | 1204 / 83 |
Values given are based on Continuous operation parameters. Intermittent values are available in the technical catalog.
- Metaris Orbital Motors Cut SheetDOWNLOAD/VIEW
- Metaris Orbital Motors Technical CatalogDOWNLOAD/VIEW
Our motors are form + function replacements for many common motors. CROSS YOUR MOTOR
